Enforce cloud connection to send push notifications on OSS (#1132)

This PR modifies how OSS instances send mobile app push notifications.
It also adds frontend warnings when user is trying to use the mobile app
without connecting to cloud.

- [x] Add public API authentication to `FCMRelayView` and throttle the
view to 300 push notifications per instance per minute. This is similar
to how SMS and phone call notifications work on OSS instances.
- [x] Add frontend warnings based on cloud connectivity
- [x] Fix/add frontend tests
- [x] Add tests for FCMRelayView and mobile app backend

## Screenshots

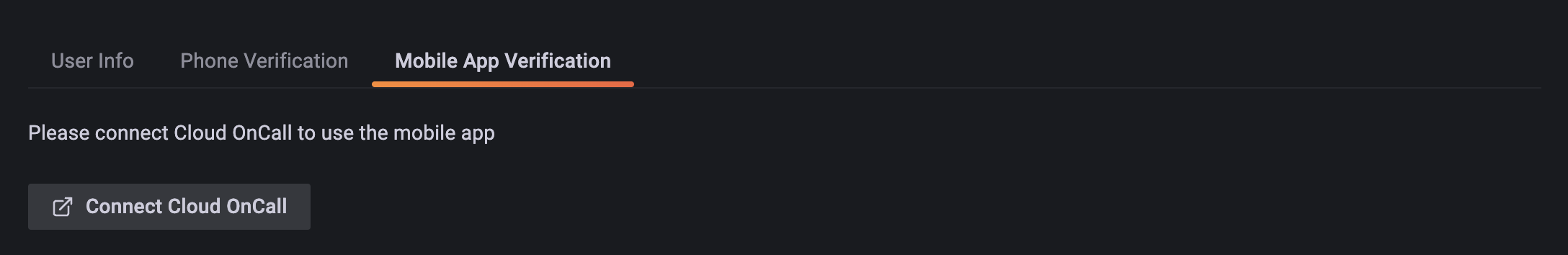

When a user tries to connect the mobile app in his settings and cloud is
not connected (clicking "Connect Cloud OnCall" redirects to the "Cloud"
tab):

<img width="1088" alt="Screenshot 2023-01-12 at 18 48 58"
src="https://user-images.githubusercontent.com/20116910/212156591-86906020-eddf-43f1-9402-7ebb7547c7e6.png">

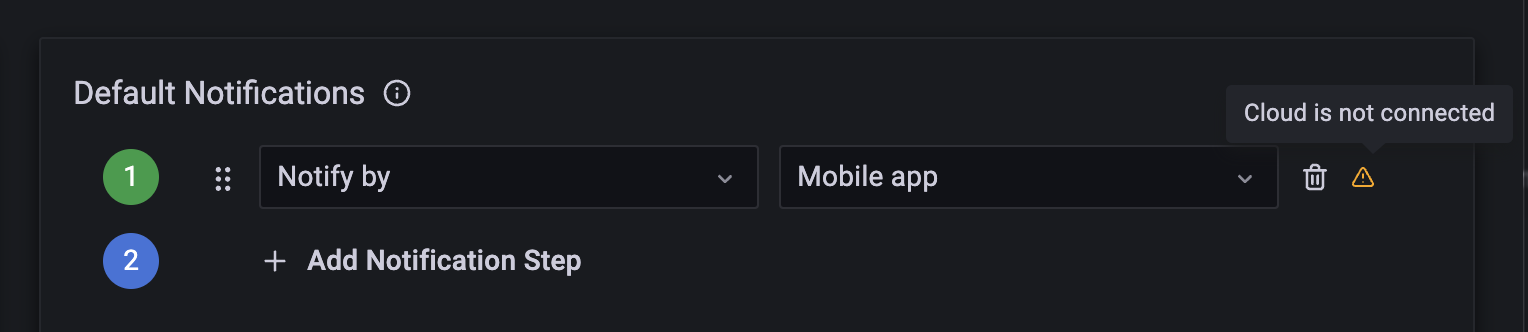

When a user tries to use mobile push notifications as a personal
notification step and cloud is not connected:

<img width="764" alt="Screenshot 2023-01-12 at 19 01 10"
src="https://user-images.githubusercontent.com/20116910/212157580-9abb0758-79ad-4316-b8cd-15b4fff01502.png">

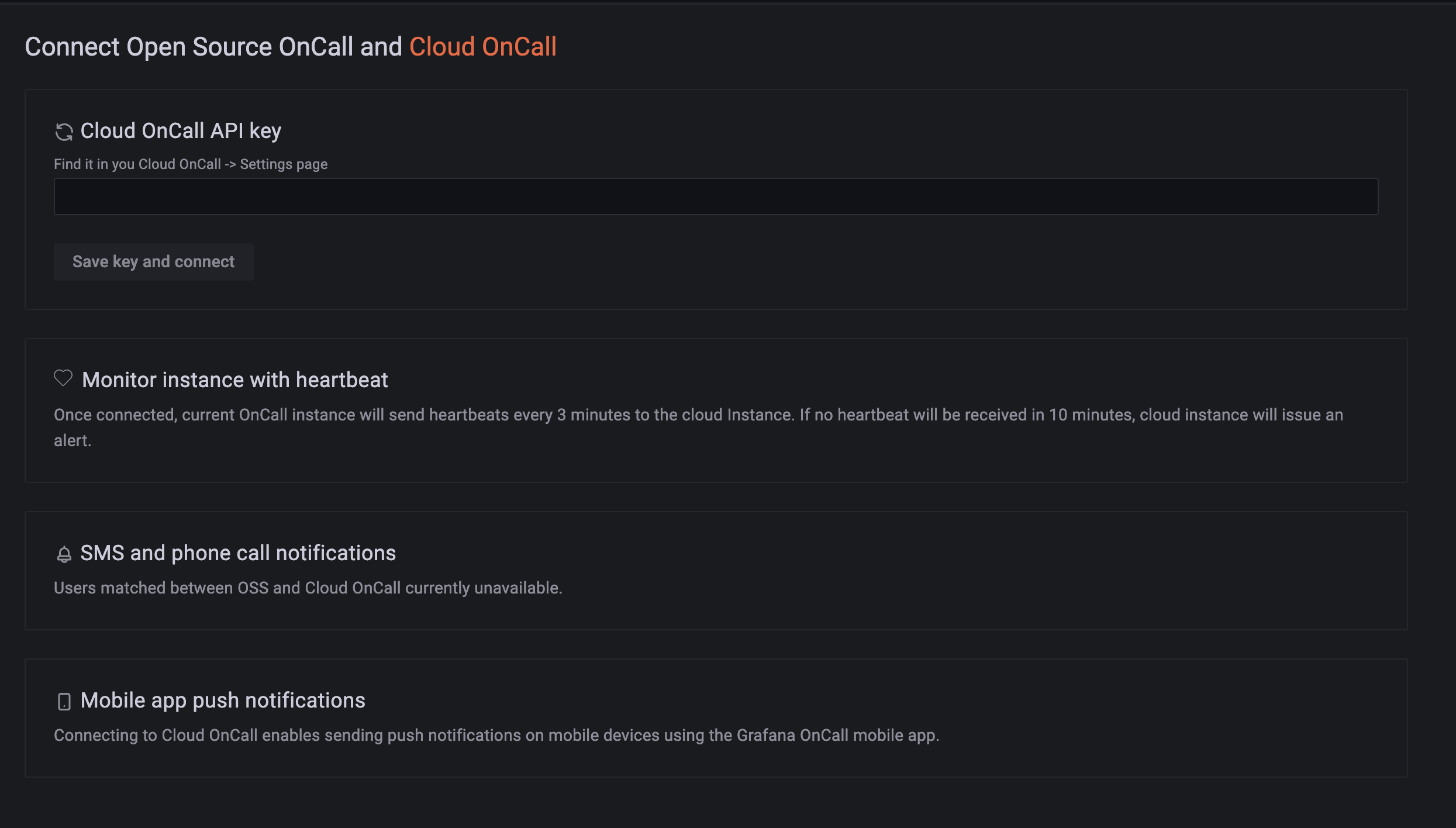

Now on the "Cloud" tab there's some info about the mobile app (the last
section at the bottom of the page):

<img width="1245" alt="Screenshot 2023-01-12 at 18 49 10"
src="https://user-images.githubusercontent.com/20116910/212156997-c8b70dd5-bf15-4bc7-8eb8-9decdb8ecc80.png">

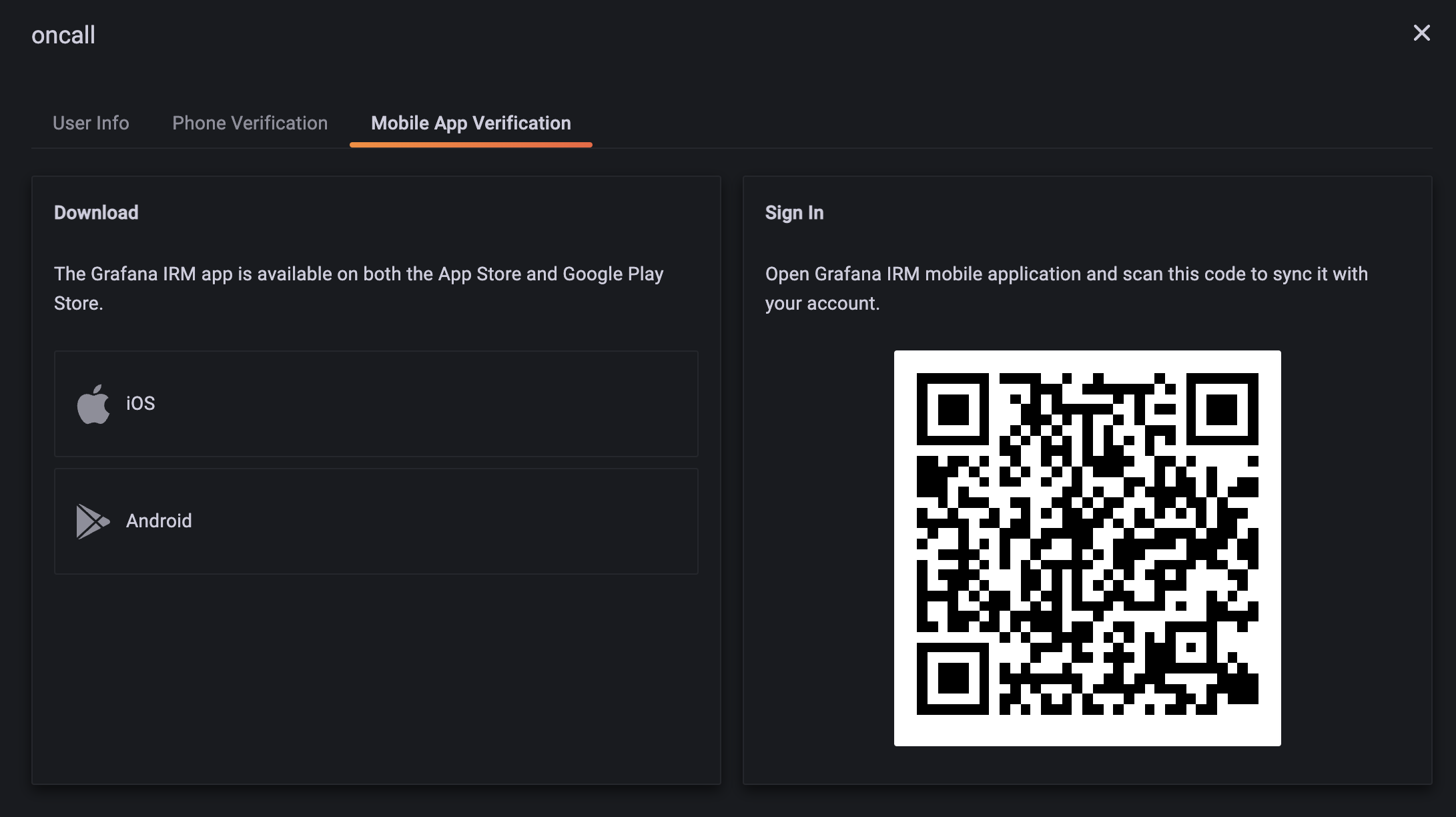

After connecting to the cloud instance, everything goes back to active
and it's now possible to connect the mobile app:

<img width="1091" alt="Screenshot 2023-01-12 at 19 08 27"
src="https://user-images.githubusercontent.com/20116910/212158811-60d49888-4714-4c0e-850f-3ff6a11a117a.png">

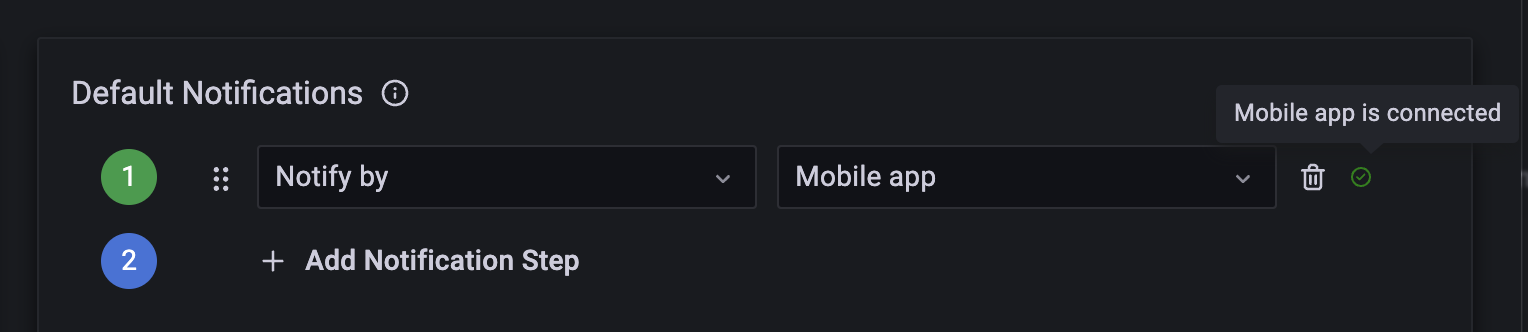

After connecting the app the warning is gone:

<img width="764" alt="Screenshot 2023-01-12 at 19 07 00"
src="https://user-images.githubusercontent.com/20116910/212158614-677ab889-127f-4d64-bacc-0c26887f3097.png">

engine/apps/mobile_app/fcm_relay.py

@@ -5,25 +5,37 @@ from django.conf import settings
 from fcm_django.models import FCMDevice
 from firebase_admin.messaging import APNSConfig, APNSPayload, Aps, ApsAlert, CriticalSound, Message
 from rest_framework import status
+from rest_framework.permissions import IsAuthenticated
 from rest_framework.response import Response
+from rest_framework.throttling import UserRateThrottle
 from rest_framework.views import APIView

+from apps.auth_token.auth import ApiTokenAuthentication
 from common.custom_celery_tasks import shared_dedicated_queue_retry_task

 task_logger = get_task_logger(__name__)
 task_logger.setLevel(logging.DEBUG)


+class FCMRelayThrottler(UserRateThrottle):
+    scope = "fcm_relay"
+    rate = "300/m"
+
+
 class FCMRelayView(APIView):
-    # TODO: use public API authentication (then it would be required to connect to a cloud instance to use the app)
-    authentication_classes = []
-    permission_classes = []
+    """
+    This view accepts push notifications from OSS instances and forwards these requests to FCM.
+    Requests to this endpoint come from OSS instances: apps.mobile_app.tasks.send_push_notification_to_fcm_relay.
+    The view uses public API authentication, so an OSS instance must be connected to cloud to use FCM relay.
+    """
+
+    authentication_classes = [ApiTokenAuthentication]
+    permission_classes = [IsAuthenticated]
+    throttle_classes = [FCMRelayThrottler]

     def post(self, request):
-        """
-        This view accepts push notifications from OSS instances and forwards these requests to FCM.
-        Requests to this endpoint come from OSS instances: apps.mobile_app.tasks.send_push_notification_to_fcm_relay
-        """
+        if not settings.FCM_RELAY_ENABLED:
+            return Response(status=status.HTTP_404_NOT_FOUND)

         try:
             token = request.data["token"]

engine/apps/mobile_app/tasks.py

@@ -6,9 +6,13 @@ from celery.utils.log import get_task_logger
 from django.conf import settings
 from fcm_django.models import FCMDevice
 from firebase_admin.messaging import APNSConfig, APNSPayload, Aps, ApsAlert, CriticalSound, Message
+from requests import HTTPError
+from rest_framework import status

 from apps.alerts.models import AlertGroup
+from apps.base.utils import live_settings
 from apps.mobile_app.alert_rendering import get_push_notification_message
+from apps.oss_installation.models import CloudConnector
 from apps.user_management.models import User
 from common.api_helpers.utils import create_engine_url
 from common.custom_celery_tasks import shared_dedicated_queue_retry_task
@@ -41,10 +45,10 @@ def notify_user_async(user_pk, alert_group_pk, notification_policy_pk, critical)
         logger.warning(f"User notification policy {notification_policy_pk} does not exist")
         return

-    device_to_notify = FCMDevice.objects.filter(user=user).first()
-
-    # create an error log in case user has no devices set up
-    if not device_to_notify:
+    def _create_error_log_record():
+        """
+        Utility method to create a UserNotificationPolicyLogRecord with error
+        """
         UserNotificationPolicyLogRecord.objects.create(
             author=user,
             type=UserNotificationPolicyLogRecord.TYPE_PERSONAL_NOTIFICATION_FAILED,
@@ -54,7 +58,13 @@ def notify_user_async(user_pk, alert_group_pk, notification_policy_pk, critical)
             notification_step=notification_policy.step,
             notification_channel=notification_policy.notify_by,
         )
-        logger.info(f"Error while sending a mobile push notification: user {user_pk} has no device set up")
+
+    device_to_notify = FCMDevice.objects.filter(user=user).first()
+
+    # create an error log in case user has no devices set up
+    if not device_to_notify:
+        _create_error_log_record()
+        logger.error(f"Error while sending a mobile push notification: user {user_pk} has no device set up")
         return

     thread_id = f"{alert_group.channel.organization.public_primary_key}:{alert_group.public_primary_key}"
@@ -116,8 +126,25 @@ def notify_user_async(user_pk, alert_group_pk, notification_policy_pk, critical)
     logger.debug(f"Sending push notification with message: {message}; thread-id: {thread_id};")

     if settings.LICENSE == settings.OPEN_SOURCE_LICENSE_NAME:
-        response = send_push_notification_to_fcm_relay(message)
-        logger.debug(f"FCM relay response: {response}")
+        # FCM relay uses cloud connection to send push notifications
+        if not CloudConnector.objects.exists():
+            _create_error_log_record()
+            logger.error(f"Error while sending a mobile push notification: not connected to cloud")
+            return
+
+        try:
+            response = send_push_notification_to_fcm_relay(message)
+            logger.debug(f"FCM relay response: {response}")
+        except HTTPError as e:
+            if status.HTTP_400_BAD_REQUEST <= e.response.status_code < status.HTTP_500_INTERNAL_SERVER_ERROR:
+                # do not retry on HTTP client errors (4xx errors)
+                _create_error_log_record()
+                logger.error(
+                    f"Error while sending a mobile push notification: HTTP client error {e.response.status_code}"
+                )
+                return
+            else:
+                raise
     else:
         response = device_to_notify.send_message(message)
         # NOTE: we may want to further handle the response from FCM, but for now lets simply log it out
@@ -131,7 +158,9 @@ def send_push_notification_to_fcm_relay(message):
     """
     url = create_engine_url("mobile_app/v1/fcm_relay", override_base=settings.GRAFANA_CLOUD_ONCALL_API_URL)

-    response = requests.post(url, json=json.loads(str(message)))
+    response = requests.post(
+        url, headers={"Authorization": live_settings.GRAFANA_CLOUD_ONCALL_TOKEN}, json=json.loads(str(message))
+    )
     response.raise_for_status()

     return response

engine/apps/mobile_app/tests/test_fcm_relay.py

@@ -0,0 +1,81 @@
+from unittest.mock import patch
+
+import pytest
+from django.urls import reverse
+from rest_framework import status
+from rest_framework.test import APIClient
+
+from apps.mobile_app.fcm_relay import FCMRelayThrottler
+
+
+@pytest.mark.django_db
+def test_fcm_relay_disabled(
+    settings,
+    load_mobile_app_urls,
+    make_organization_and_user_with_plugin_token,
+    make_user_auth_headers,
+    make_public_api_token,
+):
+    settings.FCM_RELAY_ENABLED = False
+
+    organization, user, token = make_organization_and_user_with_plugin_token()
+    _, token = make_public_api_token(user, organization)
+
+    client = APIClient()
+    url = reverse("mobile_app:fcm_relay")
+
+    response = client.post(url, HTTP_AUTHORIZATION=token)
+    assert response.status_code == status.HTTP_404_NOT_FOUND
+
+
+@pytest.mark.django_db
+def test_fcm_relay_post(
+    settings,
+    load_mobile_app_urls,
+    make_organization_and_user_with_plugin_token,
+    make_user_auth_headers,
+    make_public_api_token,
+):
+    settings.FCM_RELAY_ENABLED = True
+
+    organization, user, token = make_organization_and_user_with_plugin_token()
+    _, token = make_public_api_token(user, organization)
+
+    client = APIClient()
+    url = reverse("mobile_app:fcm_relay")
+
+    data = {
+        "token": "test_registration_id",
+        "data": {},
+        "apns": {},
+    }
+
+    response = client.post(url, data=data, format="json", HTTP_AUTHORIZATION=token)
+    assert response.status_code == status.HTTP_200_OK
+
+
+@pytest.mark.django_db
+def test_fcm_relay_ratelimit(
+    settings,
+    load_mobile_app_urls,
+    make_organization_and_user_with_plugin_token,
+    make_user_auth_headers,
+    make_public_api_token,
+):
+    settings.FCM_RELAY_ENABLED = True
+
+    organization, user, token = make_organization_and_user_with_plugin_token()
+    _, token = make_public_api_token(user, organization)
+
+    client = APIClient()
+    url = reverse("mobile_app:fcm_relay")
+
+    data = {
+        "token": "test_registration_id",
+        "data": {},
+        "apns": {},
+    }
+
+    with patch.object(FCMRelayThrottler, "rate", "0/m"):
+        response = client.post(url, data=data, format="json", HTTP_AUTHORIZATION=token)
+        assert response.status_code == status.HTTP_429_TOO_MANY_REQUESTS

engine/apps/mobile_app/tests/test_notify_user.py

@@ -0,0 +1,171 @@
+from unittest.mock import patch
+
+import pytest
+from fcm_django.models import FCMDevice
+
+from apps.base.models import UserNotificationPolicy, UserNotificationPolicyLogRecord
+from apps.mobile_app.tasks import notify_user_async
+from apps.oss_installation.models import CloudConnector
+
+MOBILE_APP_BACKEND_ID = 5
+CLOUD_LICENSE_NAME = "Cloud"
+OPEN_SOURCE_LICENSE_NAME = "OpenSource"
+
+
+@pytest.mark.django_db
+def test_notify_user_async_cloud(
+    settings,
+    make_organization_and_user,
+    make_user_notification_policy,
+    make_alert_receive_channel,
+    make_channel_filter,
+    make_alert_group,
+    make_alert,
+):
+    # create a user and connect a mobile device
+    organization, user = make_organization_and_user()
+    FCMDevice.objects.create(user=user, registration_id="test_device_id")
+
+    # set up notification policy and alert group
+    notification_policy = make_user_notification_policy(
+        user,
+        UserNotificationPolicy.Step.NOTIFY,
+        notify_by=MOBILE_APP_BACKEND_ID,
+    )
+    alert_receive_channel = make_alert_receive_channel(organization=organization)
+    channel_filter = make_channel_filter(alert_receive_channel)
+    alert_group = make_alert_group(alert_receive_channel, channel_filter=channel_filter)
+    make_alert(alert_group=alert_group, raw_request_data={})
+
+    # check FCM is contacted directly when using the cloud license
+    settings.LICENSE = CLOUD_LICENSE_NAME
+    with patch.object(FCMDevice, "send_message", return_value="ok") as mock:
+        notify_user_async(
+            user_pk=user.pk,
+            alert_group_pk=alert_group.pk,
+            notification_policy_pk=notification_policy.pk,
+            critical=False,
+        )
+        mock.assert_called()
+
+
+@pytest.mark.django_db
+def test_notify_user_async_oss(
+    settings,
+    make_organization_and_user,
+    make_user_notification_policy,
+    make_alert_receive_channel,
+    make_channel_filter,
+    make_alert_group,
+    make_alert,
+):
+    # create a user and connect a mobile device
+    organization, user = make_organization_and_user()
+    FCMDevice.objects.create(user=user, registration_id="test_device_id")
+
+    # set up notification policy and alert group
+    notification_policy = make_user_notification_policy(
+        user,
+        UserNotificationPolicy.Step.NOTIFY,
+        notify_by=MOBILE_APP_BACKEND_ID,
+    )
+    alert_receive_channel = make_alert_receive_channel(organization=organization)
+    channel_filter = make_channel_filter(alert_receive_channel)
+    alert_group = make_alert_group(alert_receive_channel, channel_filter=channel_filter)
+    make_alert(alert_group=alert_group, raw_request_data={})
+
+    # create cloud connection
+    CloudConnector.objects.create(cloud_url="test")
+
+    # check FCM relay is contacted when using the OSS license
+    settings.LICENSE = OPEN_SOURCE_LICENSE_NAME
+    with patch("apps.mobile_app.tasks.send_push_notification_to_fcm_relay", return_value="ok") as mock:
+        notify_user_async(
+            user_pk=user.pk,
+            alert_group_pk=alert_group.pk,
+            notification_policy_pk=notification_policy.pk,
+            critical=False,
+        )
+        mock.assert_called()
+
+
+@pytest.mark.django_db
+def test_notify_user_async_oss_no_device_connected(
+    settings,
+    make_organization_and_user,
+    make_user_notification_policy,
+    make_alert_receive_channel,
+    make_channel_filter,
+    make_alert_group,
+    make_alert,
+):
+    # create a user without mobile device
+    organization, user = make_organization_and_user()
+
+    # set up notification policy and alert group
+    notification_policy = make_user_notification_policy(
+        user,
+        UserNotificationPolicy.Step.NOTIFY,
+        notify_by=MOBILE_APP_BACKEND_ID,
+    )
+    alert_receive_channel = make_alert_receive_channel(organization=organization)
+    channel_filter = make_channel_filter(alert_receive_channel)
+    alert_group = make_alert_group(alert_receive_channel, channel_filter=channel_filter)
+    make_alert(alert_group=alert_group, raw_request_data={})
+
+    # create cloud connection
+    CloudConnector.objects.create(cloud_url="test")
+
+    # check FCM relay is contacted when using the OSS license
+    settings.LICENSE = OPEN_SOURCE_LICENSE_NAME
+    with patch("apps.mobile_app.tasks.send_push_notification_to_fcm_relay", return_value="ok") as mock:
+        notify_user_async(
+            user_pk=user.pk,
+            alert_group_pk=alert_group.pk,
+            notification_policy_pk=notification_policy.pk,
+            critical=False,
+        )
+        mock.assert_not_called()
+
+    log_record = alert_group.personal_log_records.last()
+    assert log_record.type == UserNotificationPolicyLogRecord.TYPE_PERSONAL_NOTIFICATION_FAILED
+
+
+@pytest.mark.django_db
+def test_notify_user_async_oss_no_cloud_connection(
+    settings,
+    make_organization_and_user,
+    make_user_notification_policy,
+    make_alert_receive_channel,
+    make_channel_filter,
+    make_alert_group,
+    make_alert,
+):
+    # create a user and connect a mobile device
+    organization, user = make_organization_and_user()
+    FCMDevice.objects.create(user=user, registration_id="test_device_id")
+
+    # set up notification policy and alert group
+    notification_policy = make_user_notification_policy(
+        user,
+        UserNotificationPolicy.Step.NOTIFY,
+        notify_by=MOBILE_APP_BACKEND_ID,
+    )
+    alert_receive_channel = make_alert_receive_channel(organization=organization)
+    channel_filter = make_channel_filter(alert_receive_channel)
+    alert_group = make_alert_group(alert_receive_channel, channel_filter=channel_filter)
+    make_alert(alert_group=alert_group, raw_request_data={})
+
+    # check FCM relay is contacted when using the OSS license
+    settings.LICENSE = OPEN_SOURCE_LICENSE_NAME
+    with patch("apps.mobile_app.tasks.send_push_notification_to_fcm_relay", return_value="ok") as mock:
+        notify_user_async(
+            user_pk=user.pk,
+            alert_group_pk=alert_group.pk,
+            notification_policy_pk=notification_policy.pk,
+            critical=False,
+        )
+        mock.assert_not_called()
+
+    log_record = alert_group.personal_log_records.last()
+    assert log_record.type == UserNotificationPolicyLogRecord.TYPE_PERSONAL_NOTIFICATION_FAILED

engine/apps/mobile_app/urls.py

@@ -1,5 +1,3 @@
-from django.conf import settings
-
 from apps.mobile_app.fcm_relay import FCMRelayView
 from apps.mobile_app.views import FCMDeviceAuthorizedViewSet, MobileAppAuthTokenAPIView
 from common.api_helpers.optional_slash_router import OptionalSlashRouter, optional_slash_path
@@ -14,7 +12,6 @@ urlpatterns = [
     optional_slash_path("auth_token", MobileAppAuthTokenAPIView.as_view(), name="auth_token"),
 ]

-if settings.FCM_RELAY_ENABLED:
-    urlpatterns += [
-        optional_slash_path("fcm_relay", FCMRelayView.as_view(), name="fcm_relay"),
-    ]
+urlpatterns += [
+    optional_slash_path("fcm_relay", FCMRelayView.as_view(), name="fcm_relay"),
+]

engine/conftest.py

@@ -736,10 +736,12 @@ def make_integration_heartbeat():
     return _make_integration_heartbeat


-@pytest.fixture()
-def load_slack_urls(settings):
+def reload_urls(settings):
+    """
+    Reloads Django URLs, especially useful when testing conditionally registered URLs
+    """
+
     clear_url_caches()
-    settings.FEATURE_SLACK_INTEGRATION_ENABLED = True
     urlconf = settings.ROOT_URLCONF
     if urlconf in sys.modules:
         reload(sys.modules[urlconf])
@@ -747,6 +749,18 @@ def load_slack_urls(settings):
         import_module(urlconf)


+@pytest.fixture()
+def load_slack_urls(settings):
+    settings.FEATURE_SLACK_INTEGRATION_ENABLED = True
+    reload_urls(settings)
+
+
+@pytest.fixture()
+def load_mobile_app_urls(settings):
+    settings.FEATURE_MOBILE_APP_INTEGRATION_ENABLED = True
+    reload_urls(settings)
+
+
 @pytest.fixture
 def make_region():
     def _make_region(**kwargs):

grafana-plugin/src/components/Policy/NotificationPolicy.tsx

@@ -36,6 +36,8 @@ export interface NotificationPolicyProps {
   notifyByOptions?: NotifyBy[];
   telegramVerified: boolean;
   phoneStatus: number;
+  isMobileAppConnected: boolean;
+  showCloudConnectionWarning: boolean;
   color: string;
   number: number;
   userAction: UserAction;
@@ -132,6 +134,20 @@ export class NotificationPolicy extends React.Component<NotificationPolicyProps,
     }
   }

+  _renderMobileAppNote() {
+    const { isMobileAppConnected, showCloudConnectionWarning } = this.props;
+
+    if (showCloudConnectionWarning) {
+      return <PolicyNote type="danger">Cloud is not connected</PolicyNote>;
+    }
+
+    if (!isMobileAppConnected) {
+      return <PolicyNote type="danger">Mobile app is not connected</PolicyNote>;
+    }
+
+    return <PolicyNote type="success">Mobile app is connected</PolicyNote>;
+  }
+
   _renderTelegramNote() {
     const { telegramVerified } = this.props;

@@ -203,6 +219,12 @@ export class NotificationPolicy extends React.Component<NotificationPolicyProps,
       case 3:
         return <>{this._renderTelegramNote()}</>;

+      case 5:
+        return <>{this._renderMobileAppNote()}</>;
+
+      case 6:
+        return <>{this._renderMobileAppNote()}</>;
+
       default:
         return null;
     }

grafana-plugin/src/containers/MobileAppConnection/MobileAppConnection.test.tsx

@@ -2,7 +2,9 @@ import React from 'react';

 import { render, screen, waitFor } from '@testing-library/react';
 import userEvent from '@testing-library/user-event';
+import { MemoryRouter } from 'react-router-dom';

+import { CloudStore } from 'models/cloud/cloud';
 import { UserStore } from 'models/user/user';
 import { User } from 'models/user/user.types';
 import { RootStore } from 'state';
@@ -10,12 +12,33 @@ import { useStore as useStoreOriginal } from 'state/useStore';

 import MobileAppConnection from './MobileAppConnection';

+jest.mock('plugin/GrafanaPluginRootPage.helpers', () => ({
+  isTopNavbar: () => false,
+}));
+
+jest.mock('@grafana/runtime', () => ({
+  config: {
+    featureToggles: {
+      topNav: false,
+    },
+  },
+}));
+
+jest.mock('utils/authorization', () => ({
+  ...jest.requireActual('utils/authorization'),
+  isUserActionAllowed: jest.fn().mockReturnValue(true),
+}));
+
+jest.mock('@grafana/runtime', () => ({
+  getLocationSrv: jest.fn(),
+}));
+
 jest.mock('state/useStore');

 const useStore = useStoreOriginal as jest.Mock<ReturnType<typeof useStoreOriginal>>;
 const loadUserMock = jest.fn().mockReturnValue(undefined);

-const mockUseStore = (rest?: any, connected = false) => {
+const mockUseStore = (rest?: any, connected = false, cloud_connected = true) => {
   const store = {
     userStore: {
       loadUser: loadUserMock,
@@ -26,6 +49,11 @@ const mockUseStore = (rest?: any, connected = false) => {
       } as unknown as User,
       ...(rest ? rest : {}),
     } as unknown as UserStore,
+    cloudStore: {
+      getCloudConnectionStatus: jest.fn().mockReturnValue({ cloud_connection_status: cloud_connected }),
+      cloudConnectionStatus: { cloud_connection_status: cloud_connected },
+    } as unknown as CloudStore,
+    hasFeature: jest.fn().mockReturnValue(true),
   } as unknown as RootStore;

   useStore.mockReturnValue(store);
@@ -232,4 +260,16 @@ describe('MobileAppConnection', () => {
       { timeout: 6000 }
     );
   });
+
+  test('it shows a warning when cloud is not connected', async () => {
+    mockUseStore({}, true, false);
+
+    // Using MemoryRouter to avoid "Invariant failed: You should not use <Link> outside a <Router>"
+    const component = render(
+      <MemoryRouter>
+        <MobileAppConnection userPk={USER_PK} />
+      </MemoryRouter>
+    );
+    expect(component.container).toMatchSnapshot();
+  });
 });

grafana-plugin/src/containers/MobileAppConnection/MobileAppConnection.tsx

@@ -1,14 +1,17 @@
 import React, { useCallback, useEffect, useRef, useState } from 'react';

-import { Icon, LoadingPlaceholder, VerticalGroup } from '@grafana/ui';
+import { Button, Icon, LoadingPlaceholder, VerticalGroup } from '@grafana/ui';
 import cn from 'classnames/bind';
 import { observer } from 'mobx-react';

 import qrCodeImage from 'assets/img/qr-code.png';
 import Block from 'components/GBlock/Block';
+import PluginLink from 'components/PluginLink/PluginLink';
 import Text from 'components/Text/Text';
 import { User } from 'models/user/user.types';
+import { AppFeature } from 'state/features';
 import { useStore } from 'state/useStore';
+import { isUserActionAllowed, UserActions } from 'utils/authorization';

 import styles from './MobileAppConnection.module.scss';
 import DisconnectButton from './parts/DisconnectButton/DisconnectButton';
@@ -29,7 +32,29 @@ const INTERVAL_POLLING = 5000;
 const BACKEND = 'MOBILE_APP';

 const MobileAppConnection = observer(({ userPk }: Props) => {
-  const { userStore } = useStore();
+  const store = useStore();
+  const { userStore, cloudStore } = store;
+
+  // Show link to cloud page for OSS instances with no cloud connection
+  if (store.hasFeature(AppFeature.CloudConnection) && !cloudStore.cloudConnectionStatus.cloud_connection_status) {
+    return (
+      <VerticalGroup spacing="lg">
+        <Text type="secondary">Please connect Cloud OnCall to use the mobile app</Text>
+        {isUserActionAllowed(UserActions.OtherSettingsWrite) ? (
+          <PluginLink query={{ page: 'cloud' }}>
+            <Button variant="secondary" icon="external-link-alt">
+              Connect Cloud OnCall
+            </Button>
+          </PluginLink>
+        ) : (
+          <Text type="secondary">
+            You do not have permission to perform this action. Ask an admin to connect Cloud OnCall or upgrade your
+            permissions.
+          </Text>
+        )}
+      </VerticalGroup>
+    );
+  }

   const isMounted = useRef(false);
   const [mobileAppIsCurrentlyConnected, setMobileAppIsCurrentlyConnected] = useState<boolean>(isUserConnected());

grafana-plugin/src/containers/MobileAppConnection/__snapshots__/MobileAppConnection.test.tsx.snap

@@ -2774,6 +2774,59 @@ exports[`MobileAppConnection it shows a message when the mobile app is already c
 </div>
 `;

+exports[`MobileAppConnection it shows a warning when cloud is not connected 1`] = `
+<div>
+  <div
+    class="css-1j7sh2x-vertical-group"
+    style="width: 100%; height: 100%;"
+  >
+    <div
+      class="css-ztyofd-layoutChildrenWrapper"
+    >
+      <span
+        class="root text text--secondary text--medium"
+      >
+        Please connect Cloud OnCall to use the mobile app
+      </span>
+    </div>
+    <div
+      class="css-ztyofd-layoutChildrenWrapper"
+    >
+      <a
+        class="root"
+        href="/a/grafana-oncall-app/cloud"
+      >
+        <button
+          class="css-1a8393j-button"
+          type="button"
+        >
+          <div
+            class="css-wf08df-Icon"
+          >
+            <svg
+              class="css-1gebccs"
+              height="16"
+              viewBox="0 0 24 24"
+              width="16"
+              xmlns="http://www.w3.org/2000/svg"
+            >
+              <path
+                d="M18,10.82a1,1,0,0,0-1,1V19a1,1,0,0,1-1,1H5a1,1,0,0,1-1-1V8A1,1,0,0,1,5,7h7.18a1,1,0,0,0,0-2H5A3,3,0,0,0,2,8V19a3,3,0,0,0,3,3H16a3,3,0,0,0,3-3V11.82A1,1,0,0,0,18,10.82Zm3.92-8.2a1,1,0,0,0-.54-.54A1,1,0,0,0,21,2H15a1,1,0,0,0,0,2h3.59L8.29,14.29a1,1,0,0,0,0,1.42,1,1,0,0,0,1.42,0L20,5.41V9a1,1,0,0,0,2,0V3A1,1,0,0,0,21.92,2.62Z"
+              />
+            </svg>
+          </div>
+          <span
+            class="css-1mhnkuh"
+          >
+            Connect Cloud OnCall
+          </span>
+        </button>
+      </a>
+    </div>
+  </div>
+</div>
+`;
+
 exports[`MobileAppConnection it shows an error message if there was an error disconnecting the mobile app 1`] = `
 <div>
   <div

grafana-plugin/src/containers/PersonalNotificationSettings/PersonalNotificationSettings.tsx

@@ -113,6 +113,11 @@ const PersonalNotificationSettings = observer((props: PersonalNotificationSettin
     return Number(user.verified_phone_number) + 2;
   };

+  // Mobile app related NotificationPolicy props
+  const isMobileAppConnected = user.messaging_backends['MOBILE_APP']?.connected;
+  const showCloudConnectionWarning =
+    store.hasFeature(AppFeature.CloudConnection) && !store.cloudStore.cloudConnectionStatus.cloud_connection_status;
+
   return (
     <div className={cx('root')}>
       {title}
@@ -134,6 +139,8 @@ const PersonalNotificationSettings = observer((props: PersonalNotificationSettin
             number={index + 1}
             telegramVerified={Boolean(user.telegram_configuration)}
             phoneStatus={getPhoneStatus()}
+            isMobileAppConnected={isMobileAppConnected}
+            showCloudConnectionWarning={showCloudConnectionWarning}
             slackTeamIdentity={store.teamStore.currentTeam?.slack_team_identity}
             slackUserIdentity={user.slack_user_identity}
             data={notificationPolicy}

grafana-plugin/src/containers/UserSettings/parts/tabs/CloudPhoneSettings/CloudPhoneSettings.tsx

@@ -122,7 +122,7 @@ const CloudPhoneSettings = observer((props: CloudPhoneSettingsProps) => {
       {isUserActionAllowed(UserActions.OtherSettingsWrite) ? (
         <VerticalGroup spacing="lg">
           <HorizontalGroup justify="space-between">
-            <Text.Title level={3}>OnCall use Grafana Cloud for SMS and phone call notifications</Text.Title>
+            <Text.Title level={3}>OnCall uses Grafana Cloud for SMS and phone call notifications</Text.Title>
             {syncing ? (
               <Button variant="secondary" icon="sync" disabled>
                 Updating...
@@ -137,7 +137,7 @@ const CloudPhoneSettings = observer((props: CloudPhoneSettingsProps) => {
         </VerticalGroup>
       ) : (
         <VerticalGroup spacing="lg">
-          <Text.Title level={3}>OnCall use Grafana Cloud for SMS and phone call notifications</Text.Title>
+          <Text.Title level={3}>OnCall uses Grafana Cloud for SMS and phone call notifications</Text.Title>
           <Text>You do not have permission to perform this action. Ask an admin to upgrade your permissions.</Text>
         </VerticalGroup>
       )}

grafana-plugin/src/models/cloud/cloud.ts

@@ -13,6 +13,9 @@ export class CloudStore extends BaseStore {
   @observable.shallow
   items: { [id: string]: Cloud } = {};

+  @observable
+  cloudConnectionStatus: { cloud_connection_status: boolean } = { cloud_connection_status: false };
+
   constructor(rootStore: RootStore) {
     super(rootStore);

@@ -67,6 +70,10 @@ export class CloudStore extends BaseStore {
     return await makeRequest(`${this.path}${id}`, { method: 'GET' });
   }

+  async loadCloudConnectionStatus() {
+    this.cloudConnectionStatus = await this.getCloudConnectionStatus();
+  }
+
   async getCloudConnectionStatus() {
     return await makeRequest(`/cloud_connection/`, { method: 'GET' });
   }

grafana-plugin/src/pages/settings/tabs/Cloud/CloudPage.tsx

@@ -11,6 +11,7 @@ import Text from 'components/Text/Text';
 import WithConfirm from 'components/WithConfirm/WithConfirm';
 import { CrossCircleIcon, HeartIcon } from 'icons';
 import { Cloud } from 'models/cloud/cloud.types';
+import { AppFeature } from 'state/features';
 import { WithStoreProps } from 'state/types';
 import { useStore } from 'state/useStore';
 import { withMobXProviderContext } from 'state/withStore';
@@ -60,9 +61,10 @@ const CloudPage = observer((props: CloudPageProps) => {
     setApiKeyError(false);
   }, []);

-  const disconnectCloudOncall = () => {
+  const disconnectCloudOncall = async () => {
     setCloudIsConnected(false);
-    store.cloudStore.disconnectToCloud();
+    await store.cloudStore.disconnectToCloud();
+    await store.cloudStore.loadCloudConnectionStatus();
   };

   const connectToCloud = async () => {
@@ -81,6 +83,7 @@ const CloudPage = observer((props: CloudPageProps) => {
           const heartbeatData: { link: string } = await store.cloudStore.getCloudHeartbeat();
           setheartbeatLink(heartbeatData?.link);
         }
+        await store.cloudStore.loadCloudConnectionStatus();
       });
   };

@@ -312,6 +315,19 @@ const CloudPage = observer((props: CloudPageProps) => {
           </VerticalGroup>
         )}
       </Block>
+      {store.hasFeature(AppFeature.MobileApp) && (
+        <Block bordered withBackground className={cx('info-block')}>
+          <VerticalGroup>
+            <Text.Title level={4}>
+              <Icon name="mobile-android" className={cx('block-icon')} size="lg" /> Mobile app push notifications
+            </Text.Title>
+            <Text type="secondary">
+              Connecting to Cloud OnCall enables sending push notifications on mobile devices using the Grafana OnCall
+              mobile app.
+            </Text>
+          </VerticalGroup>
+        </Block>
+      )}
     </VerticalGroup>
   );

@@ -358,6 +374,19 @@ const CloudPage = observer((props: CloudPageProps) => {
           <Text type="secondary">Users matched between OSS and Cloud OnCall currently unavailable.</Text>
         </VerticalGroup>
       </Block>
+      {store.hasFeature(AppFeature.MobileApp) && (
+        <Block bordered withBackground className={cx('info-block')}>
+          <VerticalGroup>
+            <Text.Title level={4}>
+              <Icon name="mobile-android" className={cx('block-icon')} size="lg" /> Mobile app push notifications
+            </Text.Title>
+            <Text type="secondary">
+              Connecting to Cloud OnCall enables sending push notifications on mobile devices using the Grafana OnCall
+              mobile app.
+            </Text>
+          </VerticalGroup>
+        </Block>
+      )}
     </VerticalGroup>
   );


grafana-plugin/src/state/rootBaseStore/index.ts

@@ -98,7 +98,7 @@ export class RootBaseStore {
   // stores

   async updateBasicData() {
-    return Promise.all([
+    const storeUpdatePromises = [
       this.teamStore.loadCurrentTeam(),
       this.grafanaTeamStore.updateItems(),
       this.updateFeatures(),
@@ -109,7 +109,14 @@ export class RootBaseStore {
       this.escalationPolicyStore.updateWebEscalationPolicyOptions(),
       this.escalationPolicyStore.updateEscalationPolicyOptions(),
       this.escalationPolicyStore.updateNumMinutesInWindowOptions(),
-    ]);
+    ];
+
+    // Only fetch cloud connection status when cloud connection feature is enabled on OSS instance
+    if (this.hasFeature(AppFeature.CloudConnection)) {
+      storeUpdatePromises.push(this.cloudStore.loadCloudConnectionStatus());
+    }
+
+    return Promise.all(storeUpdatePromises);
   }

   setupPluginError(errorMsg: string) {
